uPVC Double Glazed Windows and Doors - aluplast IDEAL 2000® by Casver

IDEAL 2000 uPVC double glazed windows and doors are designed to provide many years of trouble-free use in any of the Australian climates, whether it is hot and humid or cold and frosty. They are not affected by even the most extreme of temperatures, humidity, heavy rain, snow, smog, or strong sun exposure without corroding, rotting, peeling, flaking, altering, withering or warping. Even after many years your IDEAL 2000 uPVC double glazed windows and doors will still look great, keep perfectly water-tight and function as well as the day they were installed. Thanks to the special ultraviolet-resistant treatment, white Casver IDEAL 2000 uPVC windows and doors are guaranteed not to yellow. What's more, they are termite-resistant and do not require any painting, saving you time and money.

FOR FREE EXPERT ADVICE
Ring us on (02) 9718 9988 today!

Who is better placed to advise you on your roller shutter project than the manufacturer?
We have been manufacturing roller shutters since 1976.

For no-obligation expert advice for your application, give us a ring or email us.

Benefits


Weather Resistance

IDEAL 2000 uPVC double glazed windows and doors are designed for weather extremes and tests have proven they pass even the harshest of weather conditions. Due to their excellent material properties IDEAL 2000 uPVC double glazed windows and doors are particularly suited to withstand exposure to strong winds, heavy rain and salty sea breezes without corroding or warping. Cyclone rated profiles, hardware and glass panels for IDEAL 2000 uPVC double glazed windows and doors are available on request.


Thermal Insulation

Although windows usually comprise only 8% of a building envelope they can cause up to 40% of a building's heat loss. Combining the excellent thermal resistance of uPVC and engineered 3 chamber industrial design, IDEAL 2000 uPVC double glazed windows and doors achieve high levels of thermal insulation thereby minimising heat loss and allowing you to enjoy a comfortable ambient temperature in your home or office. The benefits of IDEAL 2000 uPVC double glazed windows and doors are lower heating and cooling bills, reduced carbon emissions and even the ability to remain condensation-free.


Acoustic Insulation

External noise, whether from constant traffic, noisy neighbours, aeroplanes, or lawn mowers, can be frustrating, distracting and annoying. IDEAL 2000 uPVC double glazed windows and doors when installed with noise insulating glass panes provide up to 40 db of noise reduction which is like taking your home or office from street traffic noise levels to the quietness of a library.


Safety and Security

Although uPVC is a tough material difficult to break or bend, IDEAL 2000 uPVC double glazed windows and doors incorporate internal reinforced steel frames for greater strength. When combined with burglar-proof fittings and glazing, IDEAL 2000 uPVC double glazed windows and doors provide better security than traditional glass doors and windows. For the ultimate peace of mind consider combining IDEAL 2000 uPVC double glazed windows and doors with Advanced roller shutters.


Style and Design

IDEAL 2000 uPVC double glazed windows and doors are suitable for new commercial and residential constructions, as well as renovations on existing buildings and home improvements. With the wide range of styles and types of IDEAL 2000 uPVC double glazed windows and doors, your taste and requirements are sure to be met. IDEAL 2000 uPVC double glazed windows and doors are available in a number of styles including: "Classic Line", "Round Line", and "Soft Line" profiles; a number of types including tilt and turn windows, sliding windows, awning windows, leaf doors, entry doors, french doors, bi-fold doors, sliding doors, andPSK parallel "tilt and slide" doors; and a number of double glazing options.


Environmentally Friendly

Not only do the thermal insulating characteristics of IDEAL 2000 uPVC double glazed windows and doors save energy and reduce your carbon footprint, the philosophy of the manufacturer itself is to use sustainable manufacturing processes and principles; use of energy efficient extrusion processing lines, use of lead-free eco-friendly chemical stabilisers, and use of recycled materials where possible.


Fire Resistance

uPVC used in the frame and sash of IDEAL 2000 uPVC double glazed windows and doors is naturally flame retardant, self extinguishing and will not support or enhance a fire.


Uses


IDEAL 2000 uPVC double glazed windows and doors are an excellent solution for a variety of residential houses or commercial applications.


Technical Specifications


Window Profile Specifications

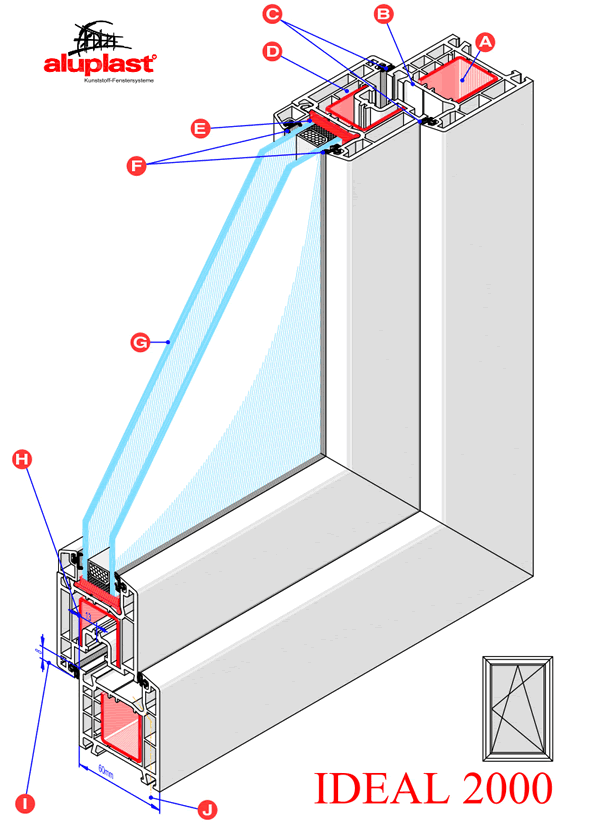

IDEAL 2000 Classic Line Window Profile

  1. Large reinforcement chamber for increased structural strength
  2. Smooth crease lines makes cleaning easy
  3. Inner and outer surrounding seals
  4. Additional airspace created by fourth chamber
  5. 15 mm to 18 mm thick glass provides improved thermal insulation
  6. Replaceable seals
  7. Glass thickness up to 35 mm for double glazed windows
  8. 13 mm structural over-hang for added strength
  9. Deep rubber seals ensure proper insulation from the weather
  10. Concealed drainage capabilities if required

Door Profile Specifications

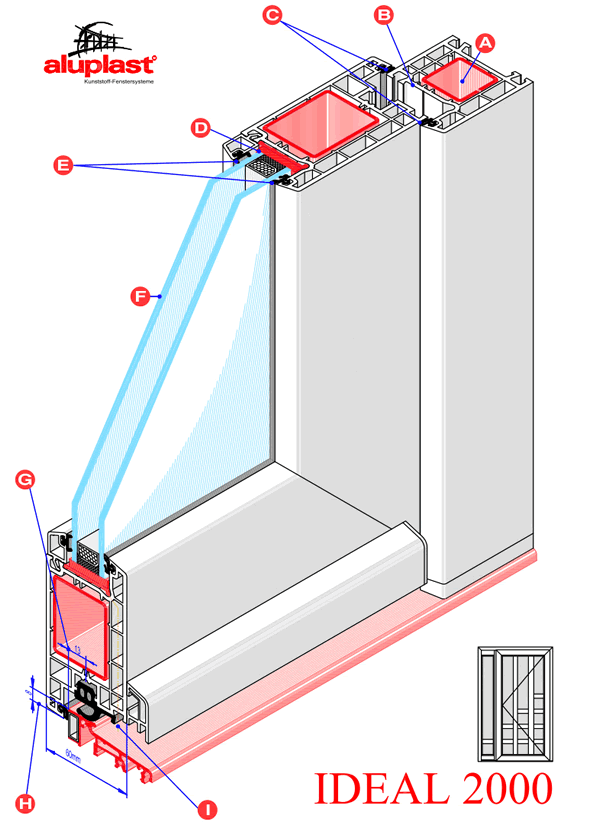

IDEAL 2000 60 mm Door Profile

  1. Large reinforcement chamber for increased structural strength
  2. Smooth crease lines makes cleaning easy
  3. Inner and outer surrounding seals
  4. 15 mm to 18 mm thick glass provides improved thermal insulation
  5. Replaceable seals
  6. Glass thickness up to 35 mm for double glazed windows
  7. 13 mm structural over-hang for added strength
  8. Deep rubber seals ensure proper insulation from the weather
  9. Concealed drainage capabilities if required

Warranty

12 months conditional warranty.


Due to continual product development the inclusions, features, colours and technical specifications of Advanced Shutter Industries products may change without notice.

Finishes


Refer to the Specifications tab for colours and finishes of stocked armoured steel security doors.

For the complete selection of Gardesa armoured steel security door models and all their shapes (including single, double, rectangular, rounded) and finishing panel materials (timber, MDF, veneers, laminates etc), stains, and colours available visitwww.gardesa.com.

Installation


Gardesa armoured steel security doors are suitable for indoor or outdoor use depending upon the material used on the external finishing panel. Refer to the Specifications tab for specific suitability of each armoured steel security door.


Specifications


The following are the technical specifications for armoured steel security doors currently in stock. For the complete selection of door models, shapes (including single, double, rectangular, rounded), and finishing panel materials (timber, MDF, veneers, laminates etc), stains, and colours available visit www.gardesa.com.

Gardesa CE93 Gardesa CS94

Opens inwards right

Opens inwards right

Lock

Burglar-proof, wrench-proof and drill-proof high security Euro Profile / DIN standard lock with external defender;

Self-blocking system to prevent forced extraction of the cylinder;

Restricted duplication key set includes 5 keys provided in sealed package;

Additional temporary lock cylinder with separate keys included.

Lock Operation

Single high security Euro profile cylinder operates all deadbolts simultaneously.

Inside thumbturn operates latch and locking system.

Door handle operates latch only.

Door Structure

1.8 mm thick sheet face with reinforcing box sections.

Deadbolts

7 deadbolts arranged in 3 arrays: 2 deadbolts at head height, 3 deadbolts at waist height and 2 deadbolts at ankle height.

Fixed Bolts

3 fixed bolts on hinge side

>Hinges

2 heavy duty adjustable door hinges.

Door Viewer

Door viewer with fish-eye lens included.

Seals

Rubber seal around edge of door and door jamb included.

Mobile drop sill which automatically lowers when door is closed included.

Safety Catch

Built-in safety catch lever and safety catch rail included.

Certification

Anti-burglary: Norm UNI 9569 Class 1.

Noise Insulation

Acoustic insulation (sound proofing) to 38.5 db RW: Norm UNI 8270.

Lock

Burglar-proof, wrench-proof and drill-proof high security Euro Profile / DIN standard lock with external defender;

Self-blocking system to prevent forced extraction of the cylinder;

Restricted duplication key set includes 5 keys provided in sealed package;

Additional temporary lock cylinder with separate keys included.

Lock Operation

Single high security Euro profile cylinder operates all deadbolts simultaneously.

Inside thumbturn operates latch and locking system.

Door handle operates latch only.

Door Structure

1.8 mm thick sheet face with reinforcing box sections.

Deadbolts

7 deadbolts arranged in 3 arrays: 2 deadbolts at head height, 3 deadbolts at waist height and 2 deadbolts at ankle height.

Fixed Bolts

3 fixed bolts on hinge side

Hinges

2 heavy duty adjustable door hinges.

Door Viewer

Door viewer with fish-eye lens included.

Seals

Rubber seal around edge of door and door jamb included.

Mobile drop sill which automatically lowers when door is closed included.

Safety Catch

Built-in safety catch lever and safety catch rail included.

Certification

Anti-burglary: Norm UNI 9569 Class 1.

Noise Insulation

Acoustic insulation (sound proofing) to 38.5 db RW: Norm UNI 8270.

Warranty

12 months conditional warranty.


Due to continual product development the inclusions, features, colours and technical specifications of Advanced Shutter Industries products may change without notice.


Optional Extras


240V Electric Motors

Choice of 240V tubular electric motors for roller shutters:

  • Electric 240V motor; or
  • Electric 240V motor with manual override; or
  • Electric 240V motor with built-in radio receiver and paired radio remote control.

240V Electric Motor Accesories

A range of 240V electric motor accessories are available as optional extras:

  • Heavy duty key switch (in wall or on wall fitting) suitable for indoors and outdoors;
  • Electric 240V motor with built-in radio receiver and paired radio remote control;
  • Radio remote control plus keyring transmitter for standard 240V electric motors;
  • Group controls for operating multiple roller shutters;
  • Timers;
  • Wind and rain sensors;
  • Free-wheeling safety clutch that avoids damage to the roller shutter if an obstruction is encountered under the roller shutter while being lowered.

Counter-balance Assist Springs

A range of counter-balance assist springs and accessories:

  • Single Assist Spring;
  • Double Assist Spring;
  • Hook;
  • Keylock;
  • Extra Blank Keys.

Miscellaneous

A range of miscellaneous parts, accessories and services:

  • Removable 180° clear anodised mullion with lockable shoot & pad bolt;
  • Mid rail (85 mm x 17 mm) clear anodised for curtain;
  • Pelmet boxes of various sizes;
  • Fixed or removable panels matching the roller shutter curtain and guides. Ideal when in-fill panels are required;
  • Powder coating of all or some of the roller shutter parts;
  • Installation and delivery. Both can be arranged if required.

Due to continual product development the inclusions, features, colours and technical specifications of Advanced Shutter Industries products may change without notice.
