Advanced Shutter Industries' line of PROEX 40mm extruded aluminium profile roller shutters are amongst the robust and most versatile roller shutter solutions available suitable for commercial and residential applications.

They provide a great way of maximising limited space - by rolling up and out of the way they provide an unobstructed passageway when open.

PROEX is available in three types of profiles:

  • PROEX 1: Single wall 40mm extruded aluminium profile;
  • PROEX 2: Double wall 40mm extruded aluminium profile; and

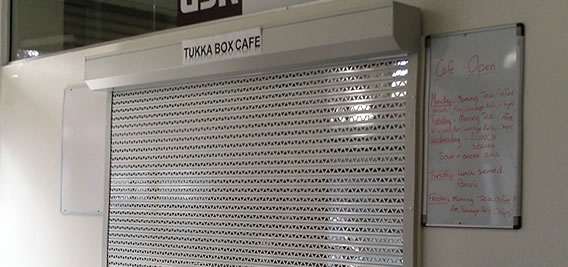

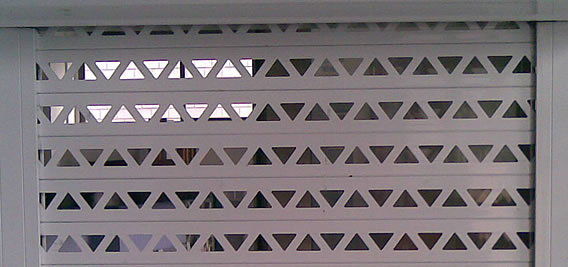

  • PROEX 3: Single wall 40mm extruded aluminium profile with triangular punch-outs.

PROEX 1 and PROEX 2 roller shutter curtains can be optionally fitted with a number of PROEX 3 slats for ventilation, natural light, or visibility through the roller shutter. PROEX 3 extruded aluminium roller shutter slats can be optionally fitted with polycarbonate backing strips allowing natural light and visibility without ventilation.

Advanced Shutter Industries has been a manufacturer of roller shutters and roller grilles since 1976 and continues to offer some of the best products available in Australia today. Available direct from our factory in Belmore (Sydney) with a professional service at competitive prices.

PROEX extruded aluminium roller shutters are simple to use and operate with a variety of manual and electric motor controlled lifting mechanisms available, giving you full control over your environment. Operation, opening and closing, locking and unlocking is customised to your needs so you choose how and where you want to open and close your PROEX extruded aluminium roller shutters, whether it is from the inside, outside, both inside and outside, via keylock, hasp and staple, electric key switch or radio remote control.


Electric Motor roller shutter lifting mechanism

The most convenient way to open and close roller shutters is to opt for the electric motor option. A range of electric tubular motors and accessories are available from Advanced Shutter Industries for roller shutters which includes:

  • 240V mains powered tubular electric motors for roller shutters operated by hand-held radio remote control;
  • 240V mains powered tubular electric motors for roller shutters operated by a wall switch or keyed wall switch;
  • Group controls to simultaneously operate a number of electric roller shutters with a single switch;
  • Wind and rain sensors and timers to automatically open or close your electric roller shutters;
  • Back-up power for 240V mains powered electric roller shutters via Uninterruptible Power Supply (UPS), so in a power outage you can still open or close your roller shutters;
  • Free-wheeling safety clutch to avoid roller shutter damage if an obstruction is encountered while closing the roller shutter; and
  • Manual Override mechanisms as a safeguard to allow manual opening and closing of your roller shutters in case of a power outage.

Electric tubular motors for roller shutters are suitable for all roller shutters sizes all the way up to 250kg in weight.


Swivel coiler roller shutter lifting mechanism

The swivel coiler strap roller shutter lifting mechanism is a popular choice offering the fastest way to open and close roller shutters. Just grasp the strap and pull down to raise the roller shutter, or grasp and feed the strap upwards to lower the roller shutter. The strap neatly coils away into the swivel coiler box. Swivel coilers are also available with a cord instead of the strap. Swivel coilers are suitable for small to medium roller shutters with a weight up to 12kg.


Geared Winch roller shutter lifting mechanism

The geared winch roller shutter lifting mechanism has a removable handle used to manually crank to raise and lower the roller shutter. Simply turn the handle clockwise to raise the roller shutter and anti-clockwise to lower the roller shutter. Geared winches attach to the roller shutter by cord, braided strap or steel cable. Various geared winch models are available for roller shutter weights up to 80kg.


Rod Winder roller shutter lifting mechanism

The rod winder roller shutter lifting mechanism has a rod which is manually cranked to raise and lower the roller shutter. Simply turn the handle one way to raise the roller shutter and the other way to lower the roller shutter. Rod winder roller shutter lifting mechanisms are suitable for roller shutters weighing up to 30kg.


Spring assist lifting mechanism

Roller shutters fitted with an assist spring as the lifting mechanism allow the roller shutter curtain to be physically raised and lowered by hand. The assist spring balances the weight of the roller shutter curtain and makes lifting and lowering the roller shutter easier and safer. Spring assist lifting mechanisms are suitable for roller shutters starting from 1.0 m wide. For commercial roller shutters wider than 2.7 m fitting a second assist spring is highly recommended to avoid axle torsion and ensure even lifting. In any case, we recommend use of an electric motor for roller shutters weighing more than 60 kg or wider than 3.0 m.

Curtain slats

PROEX extruded aluminium roller shutter slats are available in the white or mill finish, or can be optionally powder coated to other colours.

Mill Finish (standard)

White (standard)

Other (optional)


Roller shutter guides, bottom rail and pelmet box colour chart

The standard colours of Advanced Shutter Industries residential roller shutter bottom rail, guides, and pelmet box are shown below. These items can be optionally powder coated to other colours if required.

Almond (standard)

Brown (standard)

Sahara (standard)

White (standard)

Others (optional)

  • Face fit, reveal fit or under construction fit;
  • Bulkhead, bracket or pelmet box fit (up to size limits); and
  • Inwards or outwards facing roller shutter roll.

PROEX 1 Roller Shutter Profile Specifications

Profile: 40 x 9 mm flat single wall extruded aluminium roller shutter profile with nominal wall thickness of 1.1 mm.

Curtain Weight: 5.85 kg / sqm

Maximum Width*: 2500 mm

Maximum Height: 3000 mm

Pelmet Box Fit
Overall Height Pelmet Box
1200 mm 165 mm
1500 mm 180 mm
2400 mm 205 mm
2700 mm 230 mm
3000 mm 250 mm

PROEX 2 Roller Shutter Profile Specifications

Profile: 40 x 9 mm flat double wall extruded aluminium roller shutter profile with nominal wall thickness of 1.1 mm.

Curtain Weight: 7.15 kg / sqm

Maximum Width*: 4150 mm

Maximum Height: 3000 mm

Pelmet Box Fit
Overall Height Pelmet Box
1200 mm 165 mm
1500 mm 180 mm
2400 mm 205 mm
2700 mm 230 mm
3000 mm 250 mm

PROEX 3 Roller Shutter Profile Specifications

Profile: 40 x 9 mm flat single wall extruded aluminium roller shutter profile with nominal wall thickness of 1.1 mm punched with alternating triangular cut-outs. PROEX 3 slats can be optionally fitted with polycarbonate backing strips to allow natural light and visibility without ventilation.

Curtain Weight: 5.11 kg / sqm

Maximum Width*: 2500 mm

Maximum Height: 3000 mm

Pelmet Box Fit
Overall Height Pelmet Box
1200 mm 165 mm
1500 mm 180 mm
2400 mm 205 mm
2700 mm 230 mm
3000 mm 250 mm

* For width or surface area beyond roller shutter maximum specifications use multiple roller shutters within maximum width with fixed or removable mullions if appropriate.


Roller shutter guides

Roller shutter guides for 40 mm and 44 mm profiles

  • Standard roller shutter guide dimensions: 53 x 21 mm.
  • Optional thicker gauge roller shutter guide dimensions: 62 x 21 mm. Nominal wall thickness: 5 mm.
  • For flat 40 mm profiles only, optional winged side clips can be used in conjunction with the thicker gauge roller shutter guides.

Roller shutter guides for 53 mm profiles

  • Standard roller shutter guide dimensions: 62 x 23 mm.

Roller shutter guides for 77 mm profiles

  • Standard roller shutter guide dimensions for 77 mm profiles: 90 x 35 mm
  • Optional roller shutter storm-proof guide dimensions for 77 mm profiles: 100 x 35 mm

Optional Extras

240V Electric Motor Accesories

A range of 240V electric motor accessories are available as optional extras:

  • Key switch (in wall or on wall fitting) suitable for indoors and outdoors;
  • Electric 240V motor with built-in radio remote receiver and paired radio remote control;
  • Radio remote control plus keyring transmitter for standard 240V electric motors;
  • Group controls for operating multiple roller shutters;
  • Timers;
  • Wind and rain sensors;
  • Free-wheeling safety clutch that avoids damage to the roller shutter if an obstruction is encountered under the roller shutter while being lowered.

Warranty

  • Slats (profiles) are covered by a 5 year conditional warranty.
  • Other parts of the roller shutter are covered by 12 months warranty.

Due to continual product development the inclusions, features, colours and technical specifications of Advanced Shutter Industries products may change without notice.
